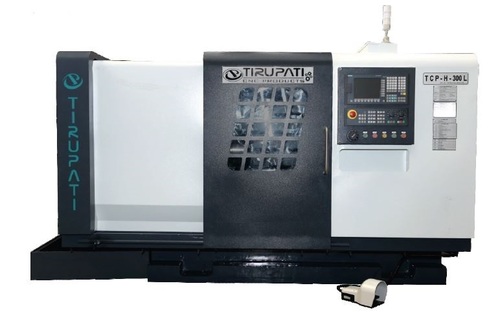

TCP-H-250L CNC Lathe Machine

Product Description

Specifications:

CNC FLAT BED LATHE MACHINE - TCP H250L-300, 650 , 1000

Capacity

Maximum Turning Dia. - 300mm,

Standard Turning Dia. -250mm,

Turning Length - 300mm, 650mm, 1000mm

Width Of bed - 325mm,

Height Of Centre - 250mm,

Spindle

Spindle Nose - A2-5,

Spindle Speed (Max.) - 1200RPM,

Spindle Motor Power - 10HP,

Spindle Power Chuck Size - 250 x 3 Jaw (Closed Chuck)

Axis

X-Axis Stroke - 150mm,

X-Axis Rapid - 8m/min,

X-Axis Guideways - BoxType,

Z-Axis Stroke - 300 , 650 , 1000 + 25mm,

Z-Axis Rapid - 6m/min,

Z-Axis Guideways - Hardened & Ground

Tooling

Turret Make - Pragati,

No. Of Station - 4 ,

Maximum Boring Bar Dia. -32mm,

Turning Tool Size - 25x 25mm

Lubrication - Auto,

Controller Systems  - Controller - Siemens

Base Type - Shimoga ,

Overall Dimension - 3000 , 3400 , 3700  x 1250x 1650,

Overall Weight - 2500Kg. , 2900 Kg , 3300 Kg

Accuracy - 0.05
