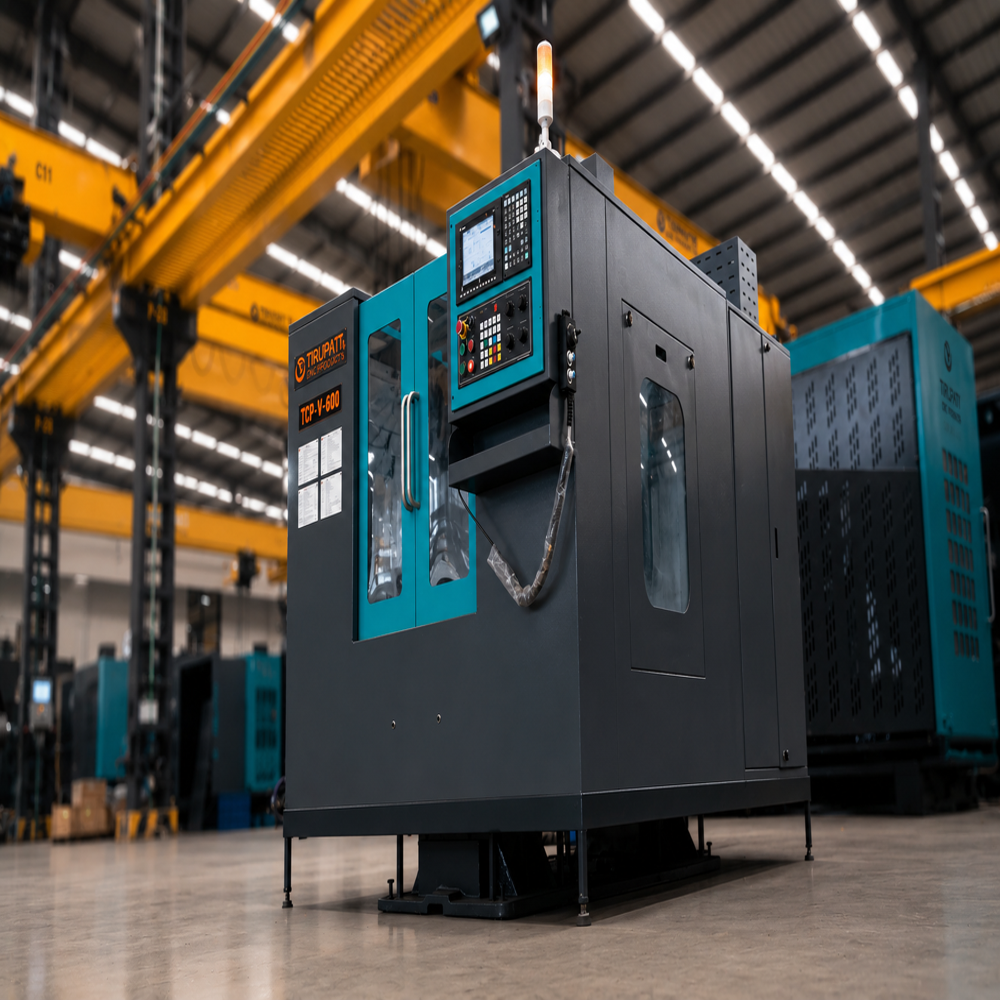

CNC Drilling Machine - TCP-V-500 (2 Axis)
Product Details:
- Product Type CNC LATHE MACHINE
- Material Stainless Steel
- Type Turning Center Horizontal
- Computerized Yes
- Automatic Yes
- PLC Control No
- Bar Feeder No
- Click to view more
X
CNC Drilling Machine - TCP-V-500 (2 Axis) Product Specifications
- No
- High
- No
- Turning Center Horizontal
- Yes
- Hydraulic
- Stainless Steel
- AC Motor
- Gray
- Yes
- CNC LATHE MACHINE
- Low Energy Consumption
CNC Drilling Machine - TCP-V-500 (2 Axis) Trade Information
- All India
Product Description
CNC Drilling Machine - TCP-V-500 (2 Axis) Specifications:
- Max. Accomodate Dia. (Working) - OD 500mm
- Max. Drilling Capacity (U-Drill) - 40mm
- Width Of Base - 375mm
- Axis Travel ( X / Z ) - 360 Degree Indexing / 400mm
- Axis Guideways ( X / Y / Z ) - Rotary Type / 35 LM Guideways
- Spindle To Chuck Distance - 300mm
- Clamping Chuck - 300 x 4 Jaw Manual Chuck
- Max. RPM - 2000RPM
- Spindle Main Motor - 10HP
- Lubrication System - Auto
- Coolant - Coolant Through Spindle
- Overall Dimension - (L x W x H) - 2200 x 1500 x 2300
- Apporoximate Weight - 2000Kg
