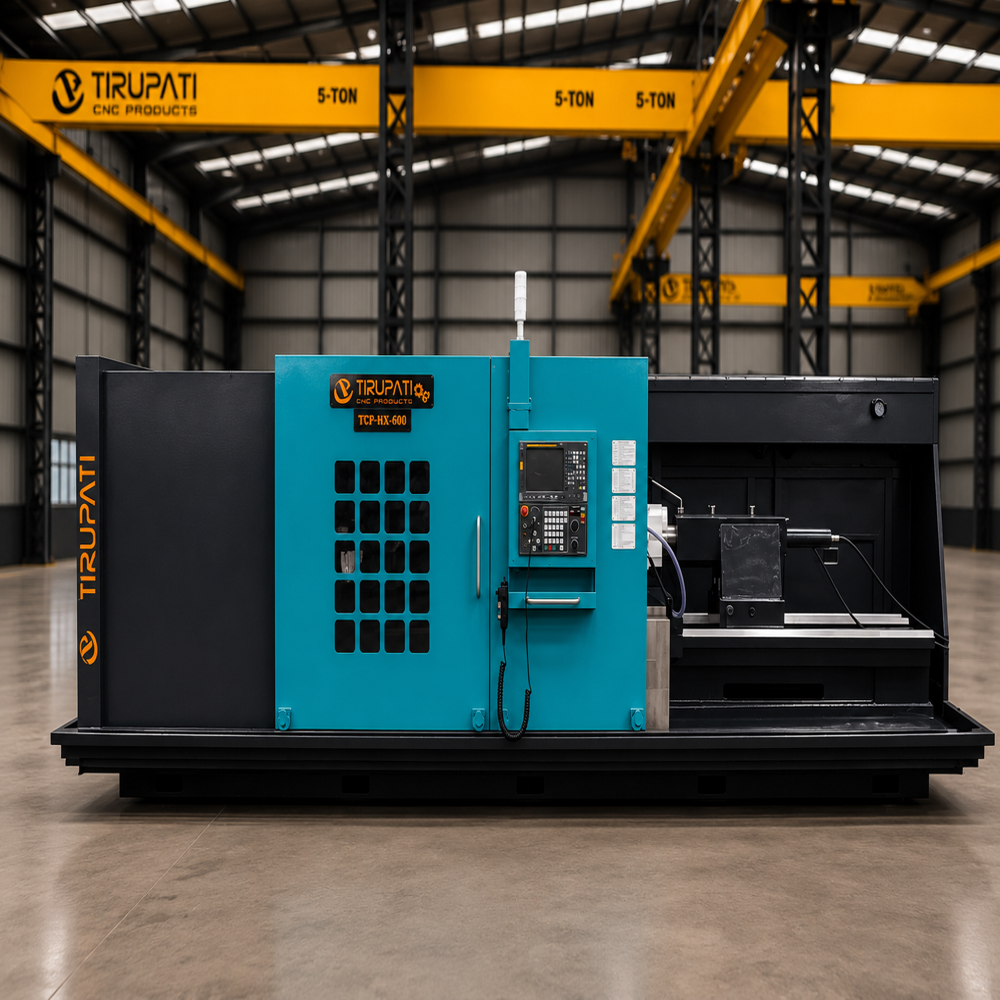

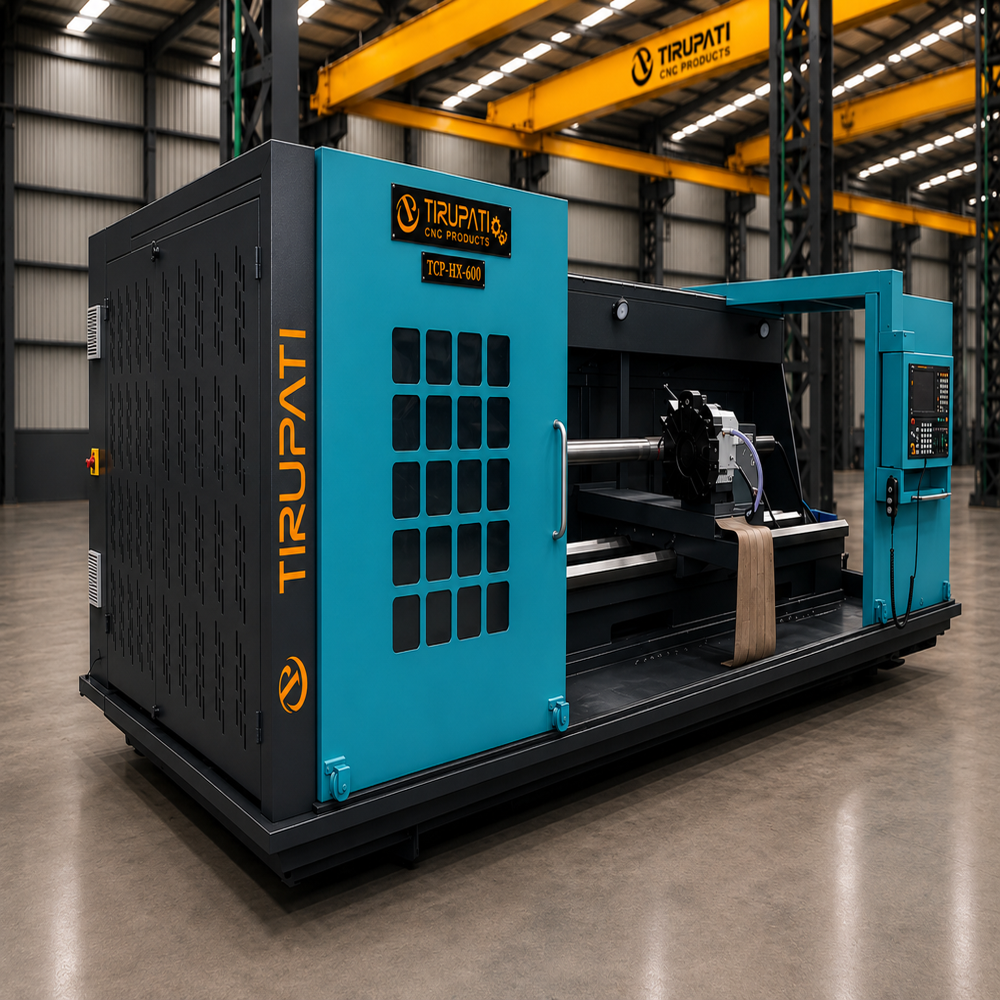

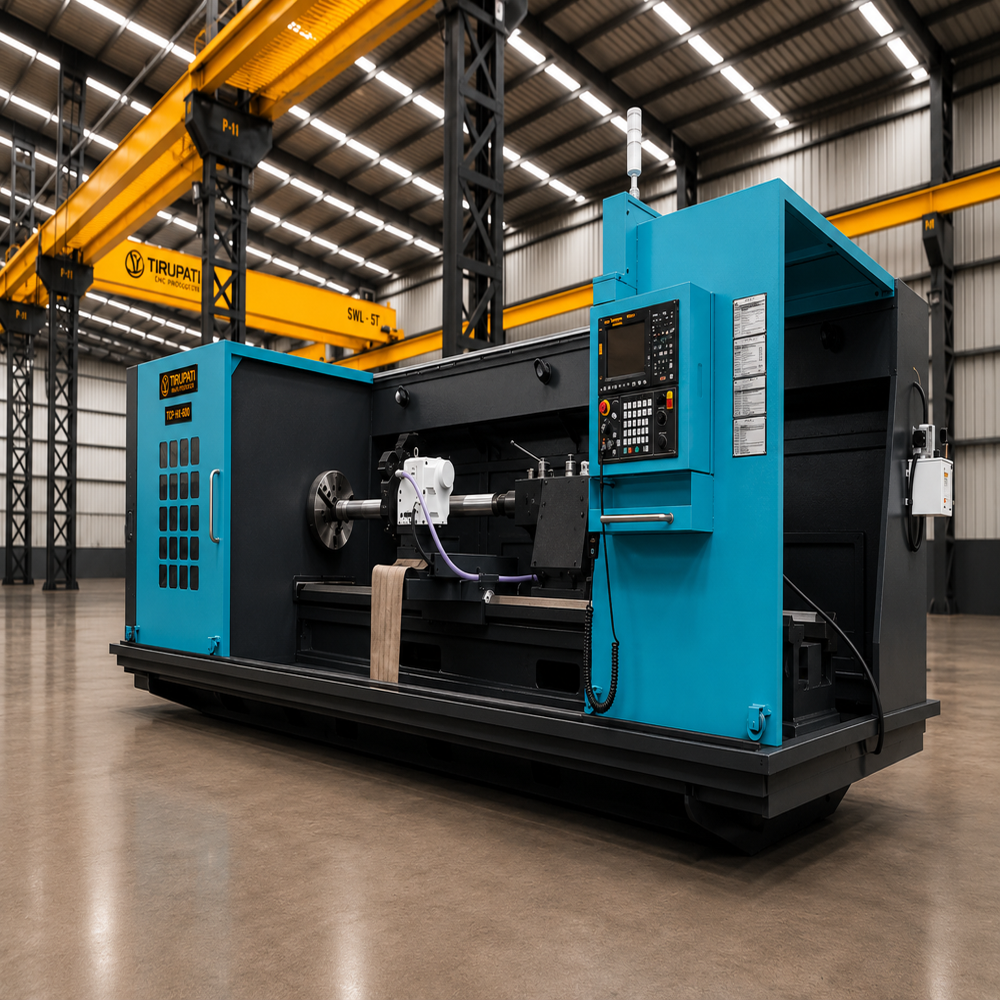

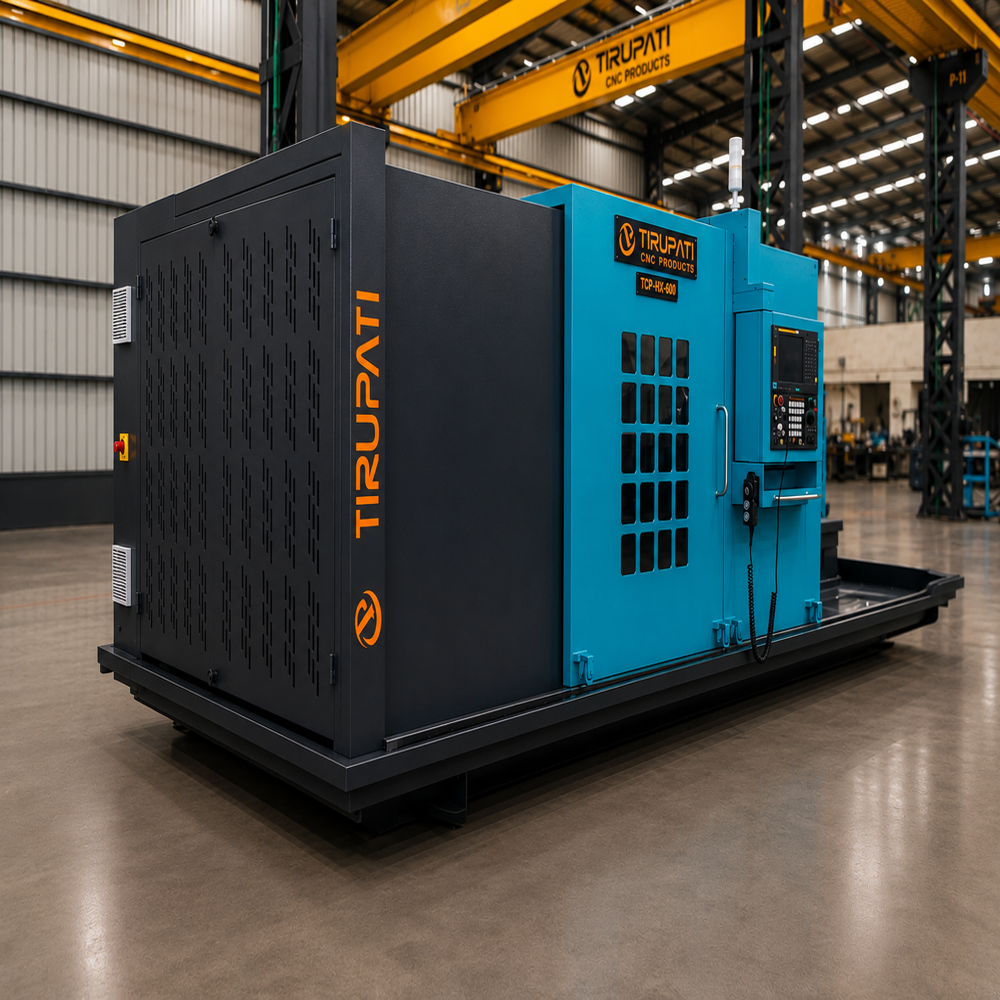

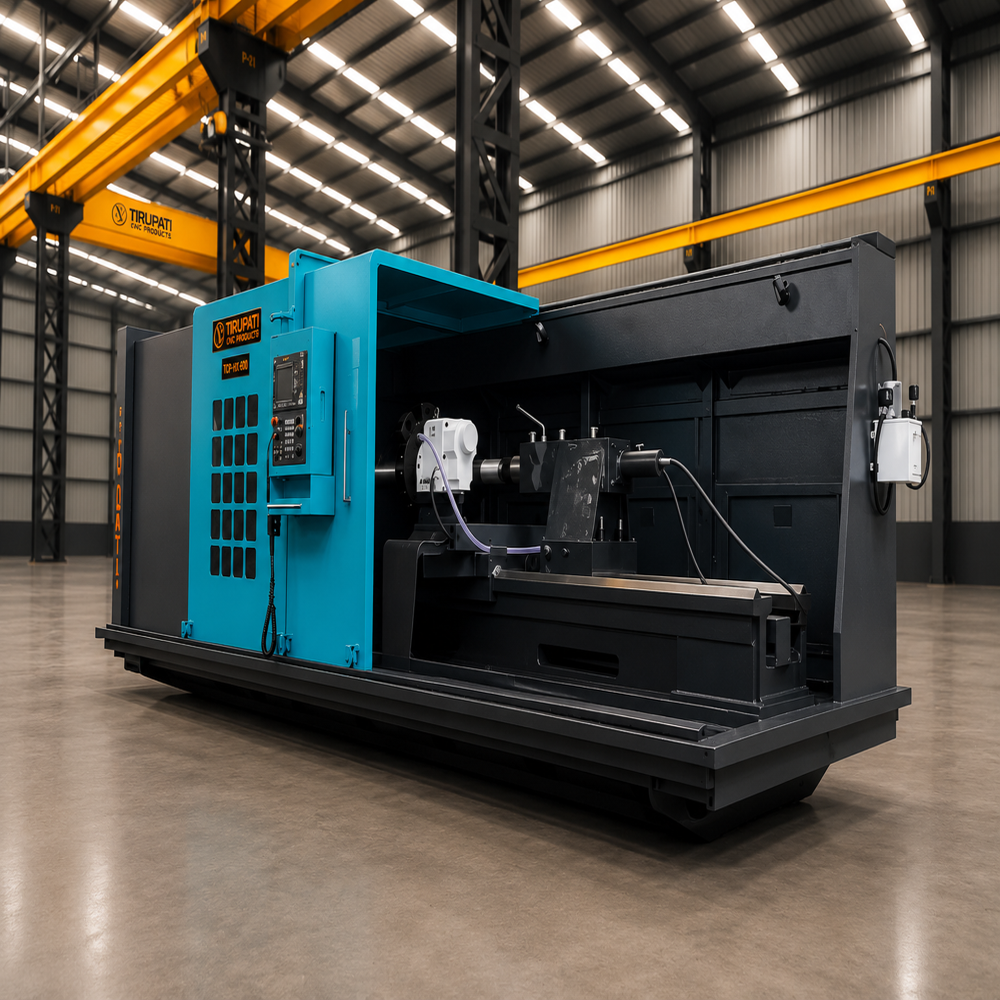

CNC Roll Turning Lathe Machine

Get a Price/Quote

Product Details:

Product Type Turning Lathe Machine
Material Metal
Type Horizontal
Computerized No
Automatic Yes
Power Source Electric
Motor AC Motor
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

CNC Roll Turning Lathe Machine Price and Quantity

Minimum Order Quantity 1 Unit

CNC Roll Turning Lathe Machine Specification

Product Type Turning Lathe Machine
Power Source Electric
Automatic Yes
Computerized No
Feature High Speed Low Energy Consumption
Motor AC Motor
Warranty 3 year
Material Metal
Type Horizontal

CNC Roll Turning Lathe Machine Trade Information

Payment Terms Cash Advance (CA)
Delivery Time 4 Week
Main Domestic Market All India

Product Description

CNC Roll Turning Lathe Machine that put forward by us is most extensively utilized in Instrument apparatus industry, electrical equipment, automotive, engineering and allied places. Owing to its highly efficiency, low power consumption, high operational fluency, and easy operations, this type of machine is highly appreciated and demanded by clients. Engineered and developed by ingenious engineers, this machine is easy to install, robust construction and available in different capacities, sizes and models.

CNC Roll Turning Lathe Machine Specifications:

1. Max. Turning Length - 3000mm

2. Max. Turning Dia.- 600mm

3. Total Length Of Bed (ZTravelling Space) - 4870mm (3860mm)

4. Height Of Center - 525mm

5. Width Of Bed - 760 mm

6. Guide ways - 4

7. Swing Over Bed - 950mm

8. Swing Over Cross Slide- 625 mm

9. Admit Between Centers - 3000 mm

10. Bed Type - One Piece Plano

11. Head stock Spindle Taper- MT 6

12. Spindle Front Axis Dia.- 215mm

13. Chuck - 600 x 4 Jaw Manual Dog Chuck

14. Chuck Clamping Dia. -100 - 500mm

15. Max. Work piece Capaity- 6 Ton

16. Tail stock Quill Dia. -150mm

17. Tail stock Quill Travel- 250mm

18. Tail stock Quill Taper -MT 6

19. Tail stock Movable -Manual

20. Tail stock Quill Movable- Manual

21. Spindle Speed - 20 -100 RPM

22. Spindle Main Motor - 22Kw Induction

23. X Axis Servomotor & Drive - 15Nm

24. Z Axis Servomotor & Drive - 22Nm

25. X Axis Cross Feed Speed- 2 - 3000 mm/min

26. Z Axis Longitudinal Feed Speed - 2 - 3000 mm/min

27. X Axis Cross Rapid Movement - 5000 mm/min

28. Z Axis Longitudinal Rapid Movement - 4000 mm/min

29. Controller System -Siemens 808D Advance

30. Headstock Bearing - Taper Roller

31. X - Balls crew Dia. -50mm

32. Z - Balls crew Dia. -63mm

33. Head stock Driven - V -Belt Cone Pulley

34. Tool post (Fixed Type) -One Piece Two Position

35. Tool Holder Size - 40 x 40mm

36. Machine Weight - 9 Ton

37. Machine Packing Size (Lx W x H) - 6500 x 2000 x 1950

Frequently Asked Questions:

Q. What is a CNC roll turning lathe machine?

Ans: A CNC roll turning lathe machine is a computer numerical control (CNC) machine tool specifically designed for turning and shaping cylindrical rolls or workpieces. It uses precision cutting tools to remove material from the workpiece, resulting in the desired shape and dimensions.

Q. How does a CNC roll turning lathe machine work?

Ans: The machine is programmed with specific instructions that control the movement of the cutting tools in multiple axes. These tools remove material from the rotating workpiece to achieve the desired shape and size. CNC technology allows for high precision and repeatability in the machining process.

Q. What types of rolls can be machined on a CNC roll turning lathe?

Ans: CNC roll turning lathes are versatile and can be used to machine various types of rolls, including those used in metalworking, paper and pulp industry, textile industry, and more. Common examples include work rolls, backup rolls, and leveling rolls.

Q. What are the advantages of using a CNC roll turning lathe machine?

Ans: Some advantages include high precision, efficiency, and repeatability in machining. CNC control allows for complex and intricate designs, reduces human error, and enables automation for continuous operation.

Q. What materials can be machined on a CNC roll turning lathe?

Ans: CNC roll turning lathes are capable of machining a wide range of materials, including metals (such as steel, aluminum, and copper), plastics, and composite materials. The specific cutting tools and machining parameters are selected based on the material being processed.

Q. How is tooling set up on a CNC roll turning lathe machine?

Ans: Tool setup involves installing cutting tools into tool holders and configuring the machine parameters, such as cutting speeds and feeds, based on the material and machining requirements. The CNC program is then loaded to guide the tool movement.

Q. Can a CNC roll turning lathe machine handle large and heavy rolls?

Ans: Yes, CNC roll turning lathes come in various sizes and capacities, and some machines are specifically designed for machining large and heavy rolls. The machine specifications, such as swing diameter and distance between centers, determine the size of rolls it can handle.

Q. What is the role of CNC programming in roll turning on a lathe machine?

Ans: CNC programming involves creating a set of instructions that dictate the tool movements and machining operations. Programmers use CAM (Computer-Aided Manufacturing) software to generate CNC code, taking into account factors like toolpaths, cutting speeds, and tool changes.

Q. How is quality control maintained in CNC roll turning?

Ans: Quality control in CNC roll turning involves regular inspection of machined parts using precision measuring instruments. Additionally, CNC machines often have built-in feedback systems that monitor and adjust machining parameters during the process to ensure consistent quality.

Q. Are there safety considerations when operating a CNC roll turning lathe machine?

Ans: Yes, safety is paramount when operating any machinery. Users should be trained on the proper use of the machine, including safety protocols for tool changes, loading and unloading of workpieces, and emergency procedures. Protective equipment and guards should be in place to minimize the risk of accidents.

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'CNC Roll Turning Machine' category

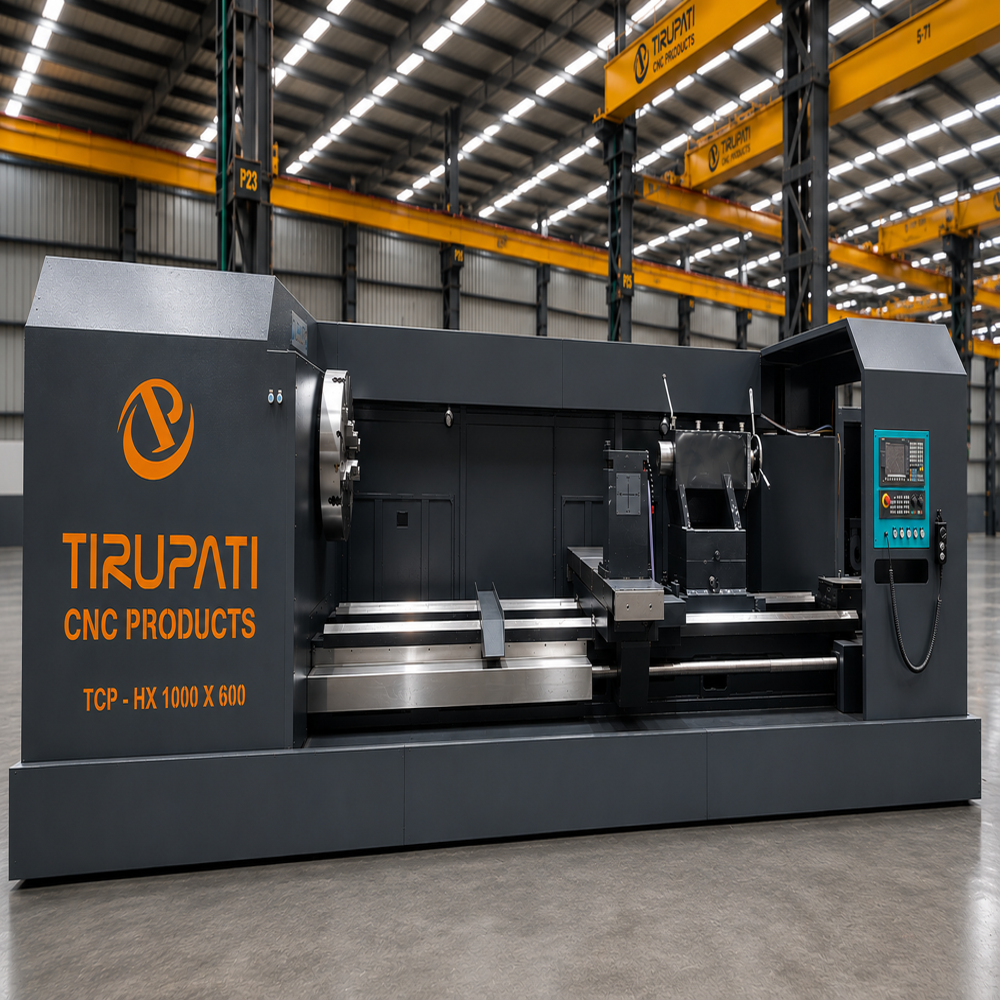

CNC ROLL TURNING LATHE MACHINE - TCP H600 X 3000 Minimum Order Quantity : 1 Warranty : Mechanical 1 Year & Controller 2 Years General Use : CNC Machine
