CNC Roll Turning Machine

CNC roll turning machines are used for turning cylindrical rolls with high precision and improved accuracy. These machines make use of computer-controlled tools to remove material from the roll so that a desired shape and finish can be attained. The machines help produce rolls for the steel industry. These rolls are used in steel mills to shape, form, and cut the steel into many products. CNC roll turning machines are helpful in manufacturing the rolls for the paper industry. These machines are widely used in the textile industry to make high-quality rolls suited for advanced and consistent fabric production.

CNC ROLL TURNING LATHE MACHINE - TCP H600 X 3000

Specifications:
Max. Turning Length -3000mm,
Max. Turning Dia.- 600mm,
Total Length Of Bed (ZTravelling Space) - 4870mm (3860mm),
Height Of Center - 525mm,
Width Of Bed - 760 mm,
Guide ways - 4,
Swing Over Bed - 950mm,
Swing Over Cross Slide- 625 mm,
Admit Between Centers -3000 mm,
Bed Type - One Piece Plano,
Head stock Spindle Taper- MT 6,
Spindle Front Axis Dia.- 215mm,
Chuck - 600 x 4 Jaw Manual Dog Chuck,
Chuck Clamping Dia. -100 - 500mm,
Max. Work piece Capaity- 6 Ton,
Tail stock Quill Dia. -150mm,
Tail stock Quill Travel- 250mm,
Tail stock Quill Taper -MT 6,
Tail stock Movable -Manual,
Tail stock Quill Movable- Manual,
Spindle Speed - 20 -100 RPM,
Spindle Main Motor - 22Kw Induction,
X Axis Servomotor & Drive - 15Nm,
Z Axis Servomotor & Drive - 22Nm,
X Axis Cross Feed Speed- 2 - 3000 mm/min,
Z Axis Longitudinal Feed Speed - 2 - 3000 mm/min,
X Axis Cross Rapid Movement - 5000 mm/min,
Z Axis Longitudinal Rapid Movement - 4000 mm/min,
Controller System -Siemens 808D Advance,
Headstock Bearing - Taper Roller ,
X - Balls crew Dia. -50mm,
Z - Balls crew Dia. -63mm,
Head stock Driven - V -Belt Cone Pulley,
Tool post (Fixed Type) -One Piece Two Position,
Tool Holder Size - 40 x 40mm,
Machine Weight - 9 Ton,
Machine Packing Size (Lx W x H) - 6500 x 2000 x 1950

Send Inquiry

CNC Roll Turning Lathe Machine

Automatic:Yes
Material:Metal
Type:Horizontal
Warranty:3 year
Motor:AC Motor
Computerized:No
Power Source:Electric

Send Inquiry

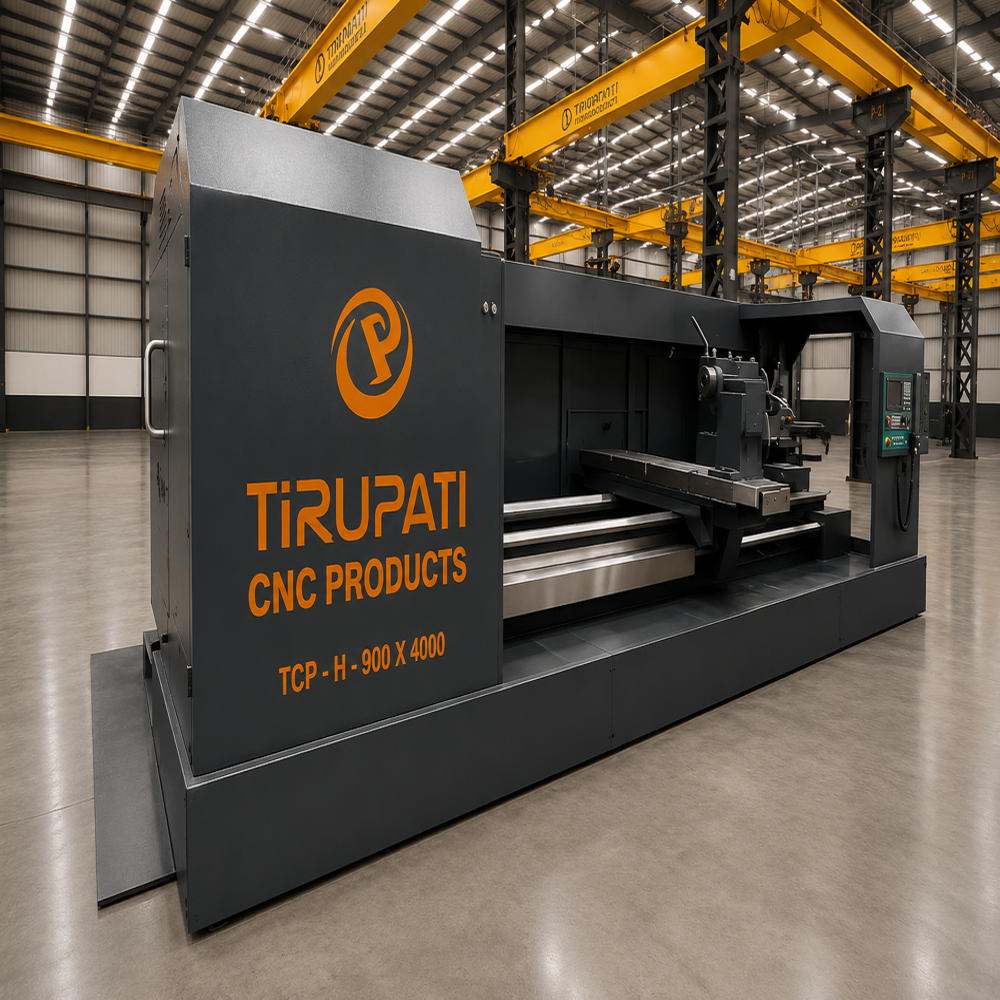

CNC ROLL TURNING LATHE MACHINE - TCP H800 X 4000

SPECIFICATION :
Max. Turning Length - 4000mm,
Max. Turning Dia. - 800mm
Height Of Center - 635mm,
Width Of Bed - 900 mm,
Guideways - 4,
Bed Type - One Piece Plano,
Headstock Spindle Taper - MT 6,
Spindle Front Axis Dia. - 215mm,
Chuck (Manual Dog) - 750 x 4 Jaw Chuck,
Chuck Clamping Dia. - 150 - 600mm,
Max. Workpiece Capaity - 8 Ton
Tailstock Quill Dia. - 175mm
Tailstock Quill Travel - 300mm
Tailstock Quill Taper - MT6
Tailstock Movable - Manual
Tailstock Quill Movable - Manual
Spindle Speed - 20 - 100 RPM,
Spindle Main Motor - 30 Kw Induction,
X Axis Cross Feed Speed - 2 - 3000 mm/min,
Z Axis Longitudinal Feed Speed - 2 - 3000 mm/min,
X Axis Cross Rapid Movement - 4500 mm/min,
Z Axis Longitudinal Rapid Movement - 4000 mm/min,
Controller System - Siemens 808D Advance
Headstock Bearing - Taper Roller
X - Ballscrew Dia. - 50mm,
Z - Ballscrew Dia. - 63mm
Headstock Driven - V - Belt Cone Pulley
Toolpost (Fixed Type) - One Piece Two Position
Tool Holder Size - 40 x 40mm,
Machine Weight - 13 Ton
Machine Packing Size (L x W x H) - 7800 x 2300 x 2100

Send Inquiry

CNC ROLL TURNING LATHE MACHINE - TCP H1000 X 5000

Max. Turning Length - 5000mm,
Max. Turning Dia. - 1000mm
Height Of Center - 750mm,
Width Of Bed - 1100 mm,
Guideways - 4+1,
Bed Type - One Piece Plano,
Headstock Spindle Taper - MT 6,
Spindle Front Axis Dia. - 250mm,
Chuck (Manual Dog) - 1000 x 4 Jaw Chuck,
Chuck Clamping Dia. - 200 - 800mm,
Max. Workpiece Capaity - 10 Ton
Tailstock Quill Dia. - 200mm
Tailstock Quill Travel - 350mm
Tailstock Quill Taper - MT6
Tailstock Movable - Manual
Tailstock Quill Movable - Manual
Spindle Speed - 10 - 80 RPM,
Spindle Main Motor - 37 Kw Induction,
X Axis Cross Feed Speed - 2 - 2500 mm/min,
Z Axis Longitudinal Feed Speed - 2 - 2500 mm/min,
X Axis Cross Rapid Movement - 4000 mm/min,
Z Axis Longitudinal Rapid Movement - 3500 mm/min,
Controller System - Siemens 808D Advance
Headstock Bearing - Taper Roller
X - Ballscrew Dia. - 63mm,
Z - Ballscrew Dia. - 80mm
Headstock Driven - V - Belt Cone Pulley
Toolpost (Fixed Type) - One Piece Two Position
Tool Holder Size - 40 x 40mm,
Machine Weight - 18 Ton
Machine Packing Size (L x W x H) - 9050 x 2700 x 2400
